Plug in Shelf Support for Wood or Glass Shelves 5mm

Plug in Shelf Support for Wood or Glass Shelves 5mm

This product has variations of 25, 50 & 100. Glass version comes with rubber pad.

  • Application: For wood or glass shelves
  • Colour/finish: Nickel
  • Base Mounting Method: For insert fitting
  • For drill hole Ø: 5.00 mm
  • Support size: 3.00 mm
  • Pin length: 8.00 mm
  • Version: Shelf Support or rubber pad
  • Material: Zinc Alloy
  • Load bearing capacity per item: 15.60kg
  • Load bearing capacity with 4 shelf supports: 62.40kg
*Load bearing capacity per item, tested in accordance with DIN EN 16337:2013-08 with 1.7 kg plate for impact test with shelf size 300 x 1000 x 19 mm, i.e. 62.4 kg load bearing capacity when using 4 shelf supports.
Select Quantity
Select Material
From $3.08
Plug in Shelf Support for Wood or Glass Shelves 5mm—
$3.08

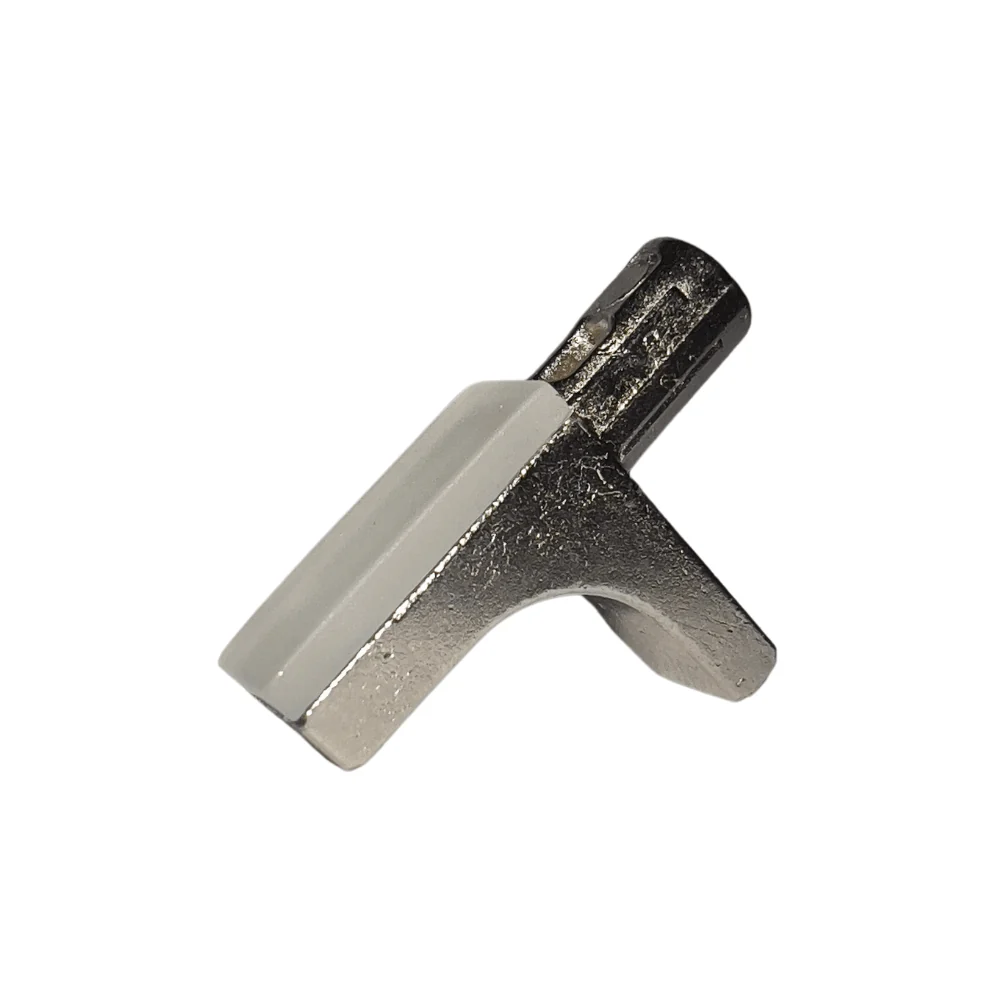

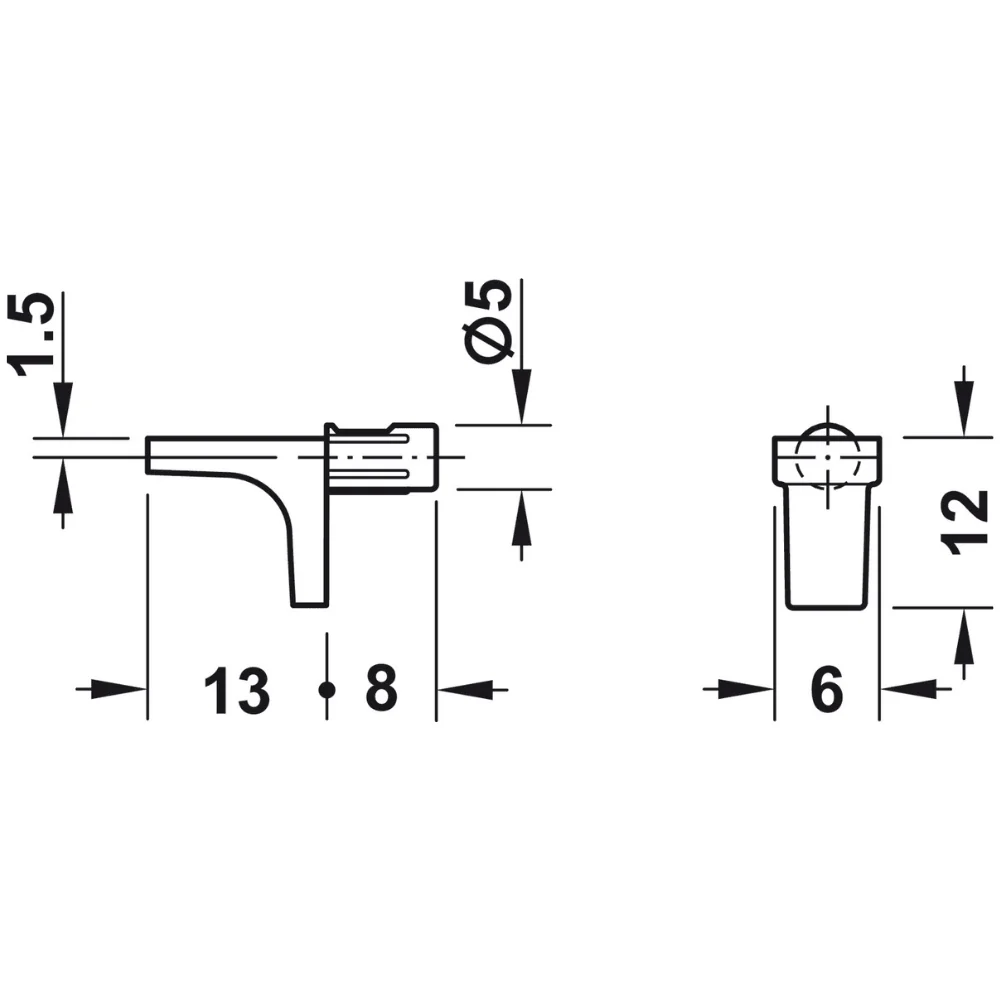

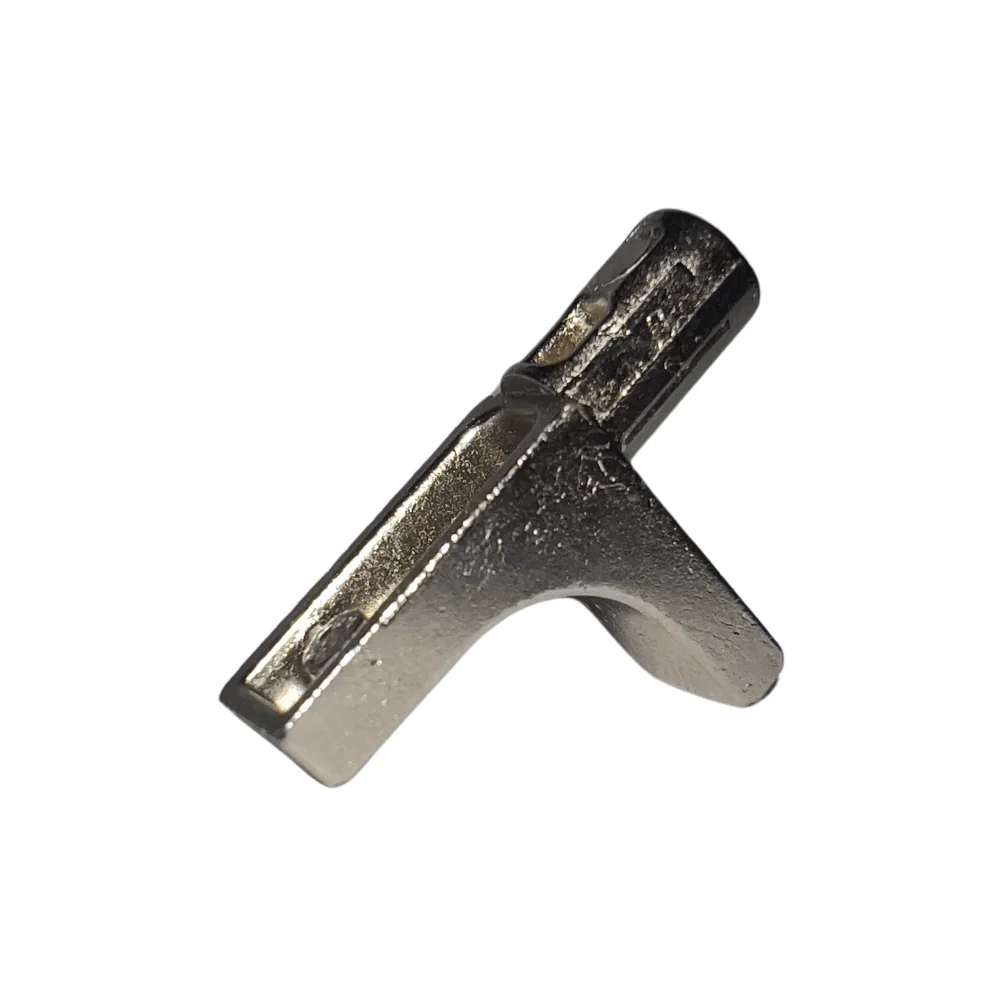

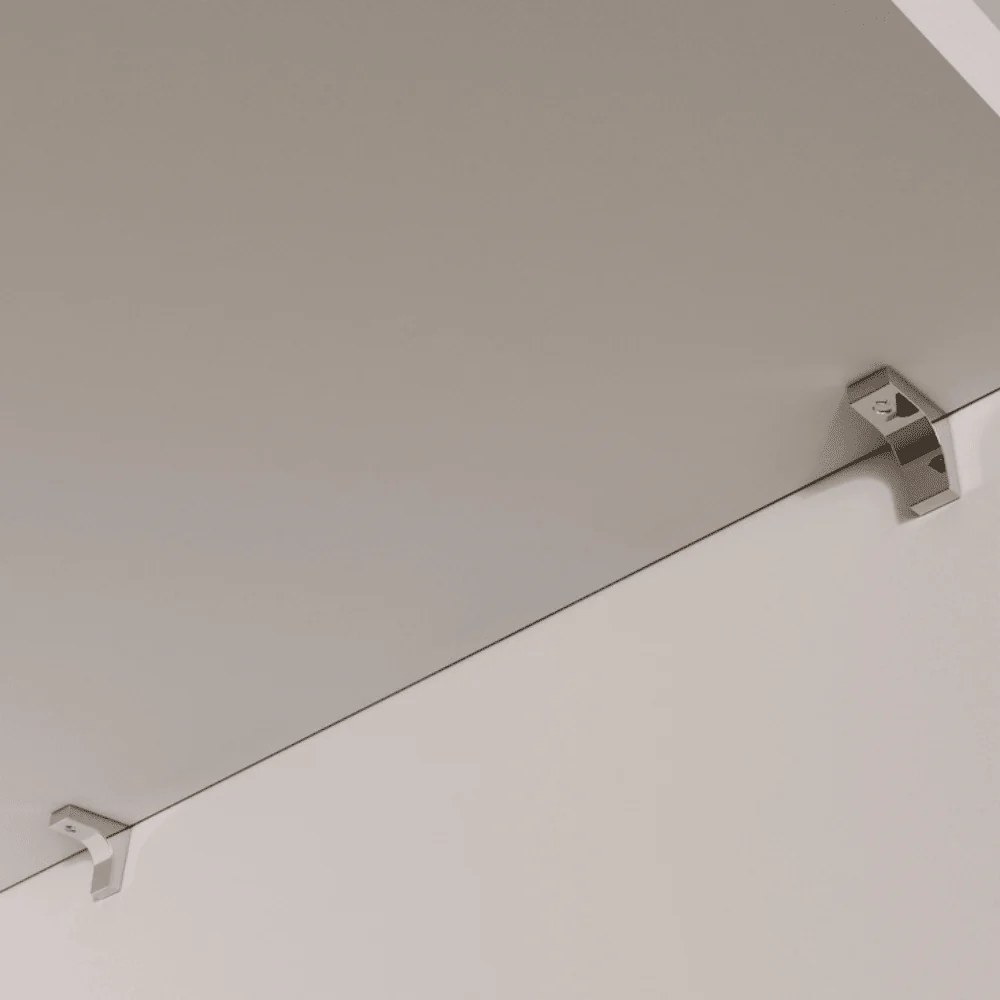

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

Description

This product has variations of 25, 50 & 100. Glass version comes with rubber pad.

  • Application: For wood or glass shelves
  • Colour/finish: Nickel
  • Base Mounting Method: For insert fitting
  • For drill hole Ø: 5.00 mm
  • Support size: 3.00 mm
  • Pin length: 8.00 mm
  • Version: Shelf Support or rubber pad
  • Material: Zinc Alloy
  • Load bearing capacity per item: 15.60kg
  • Load bearing capacity with 4 shelf supports: 62.40kg
*Load bearing capacity per item, tested in accordance with DIN EN 16337:2013-08 with 1.7 kg plate for impact test with shelf size 300 x 1000 x 19 mm, i.e. 62.4 kg load bearing capacity when using 4 shelf supports.
